Gas-Liquid Distribution SS316 Metal Random Packing For Scrubbers 50*50mm
Product Attributes
Product Name
Metal Tower Packing
Corrosion Resistance
Excellent Corrosion Resistance
Void Fraction
High Void Fraction
Place of Origin
Hebei Province, China
Certification
ISO9001:2015
Product Description

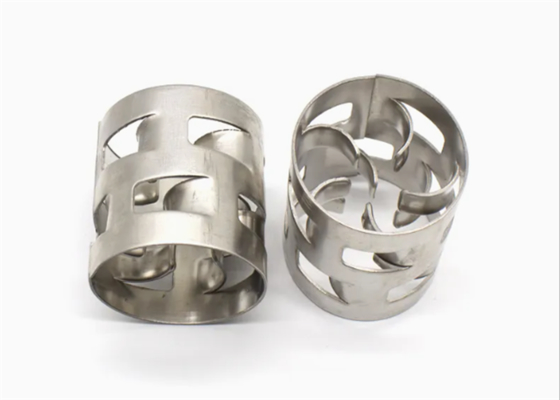

Our Metal Random Pall Ring feature a unique design that promotes high-performance and efficiency in various industrial processes, such as distillation, absorption, and stripping. The open structure of the rings allows for high gas and liquid flow rates, while their large surface area provides excellent mass transfer.
With our Metal Pall Rings, you can expect exceptional mechanical strength, which ensures that the rings can withstand the harsh conditions in many industrial processes. Additionally, the rings are resistant to corrosion, abrasion, and high temperatures, making them ideal for use in demanding environments.

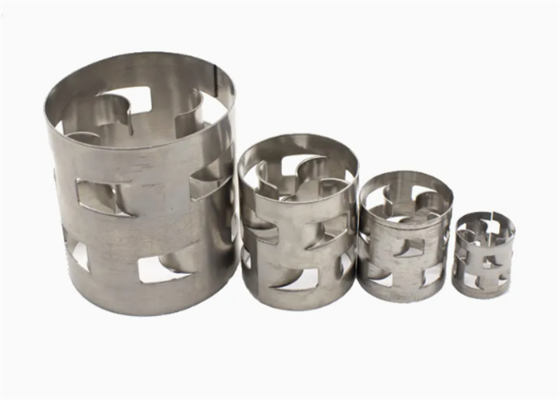

Our Metal Pall Rings are available in various sizes, with the most common size being 25mm, 38mm, 50mm, 76mm, and 90mm. We can also provide customized sizes to meet your specific needs.
Key Features
- Easily wettable
- High resistance to fouling
- High temperature endurable
- High temperature applications
- High mechanical strength
- High capacity with low pressure drop
- Mechanically robust, lesser probability of breakage
- Good liquid/gas distribution and high mass transfer efficiency
Technical Parameters
| Product Attribute | Value |
| Product Name | Metal Random Packing |
| Product Types | Metal Tower Packing, Random Tower Packing, Metal Saddle Ring Packing |
| Diameter | 25~90mm |
| Surface Area | High Surface Area |
| Void Fraction | High Void Fraction |
| Materials | CS, SS, Copper, Titanium |
Detailed Specifications
| Model | Pall Ring |
| Material | Carbon Steel; SS 304, 304L, 410, 316, 316L, etc. |
| Preferred Sizes (mm) | 16*16*0.3 | 25*25*0.3 | 38*38*0.4 | 50*50*0.5 | 76*76*0.6 | 89*89*0.7 |
| Bulk density (kg/m3) | 345 | 214 | 193 | 182 | 142 | 145 |
| Number (per m3) | 201000 | 51000 | 15000 | 6500 | 1830 | 1160 |
| Surface area (m2/m3) | 346 | 212 | 145 | 106 | 69 | 62 |
| Free volume (%) | 95.5 | 96.2 | 96.7 | 97.5 | 97.4 | 97.1 |
| Typical Application | Absorption, scrubbing and stripping services |
Applications
- Liquid extractors
- NH3 extraction devices
- Ethylene extraction columns
- Carbon monoxide converters
- Petrochemical and medical equipment
- Dimethyl terephthalate running column
- Mass-transfer columns separation devices
- Carbon dioxide and hydrogen sulphide absorption and flash tower
Customization
The Metal Tower Packing is designed for gas-liquid separation and has a high surface area for efficient performance. It has excellent corrosion resistance, making it a durable and reliable choice for industrial applications. This product is available in bulk packing and can be loaded at Xingang port.
Product Gallery
Frequently Asked Questions
Q1: What is the brand name of the metal random packing product?
A1: The brand name of the metal random packing product is Yuanhai.
Q2: What is the model number of the metal random packing product?
A2: The model number of the metal random packing product is YH-04.
Q3: Where is the metal random packing product manufactured?
A3: The metal random packing product is manufactured in Hebei Province, China.
Q4: What is the minimum order quantity for the metal random packing product?
A4: The minimum order quantity for the metal random packing product is 1 m³.
Q5: What is the payment method accepted for the metal random packing product?
A5: The payment method accepted for the metal random packing product is T/T.
Q6: What is the certification of the metal random packing product?
A6: The metal random packing product is certified with ISO9001:2015.
Q7: What is the price range for the metal random packing product?
A7: The price for the metal random packing product is negotiable.
Q8: What is the packaging method used for the metal random packing product?
A8: The metal random packing product is packaged by wooden box.
Q9: What is the delivery time for the metal random packing product?
A9: The delivery time for the metal random packing product is 7 days.
Q10: What is the monthly supply ability for the metal random packing product?
A10: The monthly supply ability for the metal random packing product is 800 cubic meter/cubic meters.
