358 Security Fencing Anti-Climb Anti-Cut Galvanized Steel Panels

Çin Anping yuanhai wire mesh products Co., Ltd Sertifikalar
Çin Anping yuanhai wire mesh products Co., Ltd Sertifikalar
Nazik misafirperverliğiniz için teşekkürler.

—— Roger Hopkins

Güzel hizmet, yüksek kalite ve yüksek itibara sahip iyi bir şirket.

—— Bay mosharaf hossain

Gabion Mesh'i aldınız, Satış sonrası hizmetiniz için teşekkürler.

—— Tshediso Sedie

Ben sohbet şimdi

358 Security Fencing Anti-Climb Anti-Cut Galvanized Steel Panels

358 Security Fencing Anti-Climb Anti-Cut Galvanized Steel Panels

Büyük resim :  358 Security Fencing Anti-Climb Anti-Cut Galvanized Steel Panels

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: YUANHAI
Sertifika: ISO9001
Model numarası: YH-ACF
Ödeme & teslimat koşulları:
Min sipariş miktarı: 100 PCS
Fiyat: US$20~80
Ambalaj bilgileri: 1. Paletin altına baloncuklu ambalaj 2. Her iki panel arasına plastik film koymak 3. Panellerin her
Teslim süresi: 5-8 iş günü
Ödeme koşulları: T/T, L/C
Yetenek temini: Ayda 500 pc
Detaylı ürün tanımı
Ürün adı: 358 Güvenlik Çitleri Anahtar Kelimeler: Anti-Climb Anti-Cut Çit
Kaynaklı Güç: Aralık 540 ∼ 690 N/m2. Panel yüksekliği: 1.2m-6m (Önerme Boyut: 2m/2,4m/3m)
yatay tel: 3,5 mm Uygulama: Yüksek güvenlik alanları
Genişlik: 2.5m Malzeme: Galvanizli çelik tel
Bitirme: Galvanizli, toz boyalı, PVC kaplı Güvenlik düzeyi: Anti-iklim, anti-kesim
İşlem: Dokuma ve kaynak Örnek: Ücretsiz
Vurgulamak:

358 anti-climb security fencing

,

galvanized steel security panels

,

anti-cut 358 fence panels

High Strength 358 Security Fencing Anti-Climb Protection Panels
Product Specifications
Attribute Value
Product Name 358 Security Fencing
Key Features Anti-climb, anti-cut fence
Welded Strength 540–690 N/m²
Panel Height 1.2m-6m (Recommended: 2m/2.4m/3m)
Horizontal Wire 3.5mm
Application High security areas
Width 2.5m
Material Galvanized steel wire
Finishing Galvanized, powder coated, PVC coated
Security Level Anti-Climb, Anti-Cut
Process Weaving and Welding
Sample Available for free
Product Description

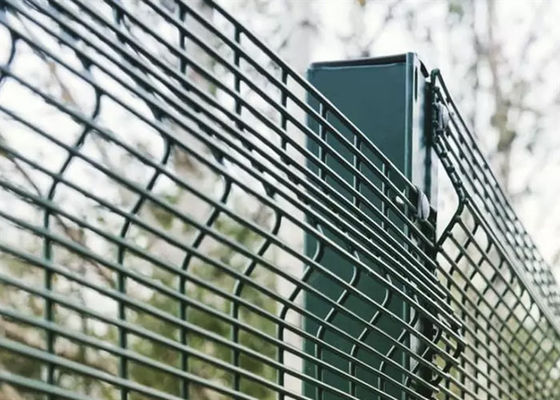

The 358 security mesh is the ultimate security fencing system, also known as the wire-wall system. Its design makes it extremely difficult to cut through using conventional wire cutters, offering maximum security and anti-corrosion protection.

With its 4mm wire diameter and rectangular mesh configuration, the panel provides excellent visibility while resisting vandalism. The finger and toe-proof mesh pattern classifies it as an anti-climb system, making it ideal for high-risk areas. This system is extensively used by the Ministry of Defence around high-security sites.

The mesh size is 76.2×12.7mm (center to center), with horizontal wire spacing of 12.7mm and vertical wire spacing of 76.2mm. The fencing offers superior anti-corrosion performance, anti-aging properties, aesthetic appeal, and easy installation.

Detailed Specifications
Specification 2.1m 2.4m 3.0m
Panel height 2134mm 2438mm 2997mm
Panel width 2515mm 2515mm 2515mm
Mesh size 12.7 x 76.2mm 12.7 x 76.2mm 12.7 x 76.2mm
Horizontal wire 4mm 4mm 4mm
Vertical wire 4mm 4mm 4mm
Panel weight 50kg 57kg 70kg
Posts 60 x 60 x 3 mm 60 x 60 x 3 mm 80 x 80 x 3 mm
Post length 2.8m 3.1m 4.0m
Clamp bar 40 x 6 m slotted 40 x 6 m slotted 40 x 6 m slotted
Fixings 8 galv bolt c/w Permacone security nut
No. of fixings 8 9 11
Key Features
  • Anti-climb: The high-density mesh makes it impossible to grasp with hands and feet, providing excellent protection against climbing.
  • Anti-shear: Large wire diameter and dense mesh configuration render conventional wire cutters ineffective.
  • Aesthetic appeal: Flat mesh surface with high visibility and vandalism resistance.

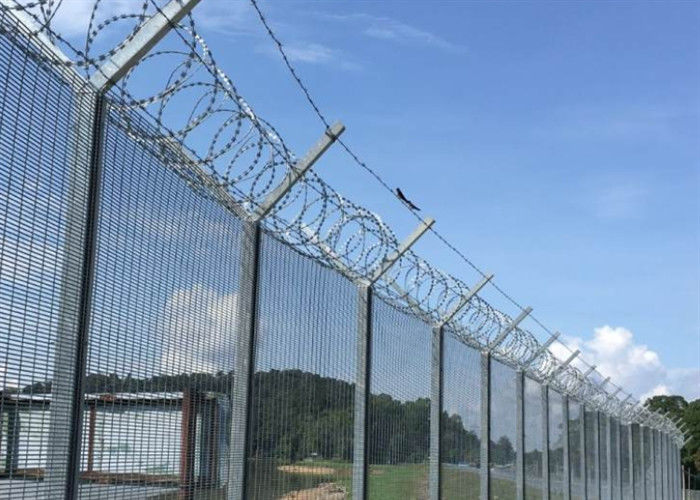

Applications
Prisons
Sport Stadiums
Schools/Hospitals
Commercial Sites
Airports
Power stations
Industrial Estates

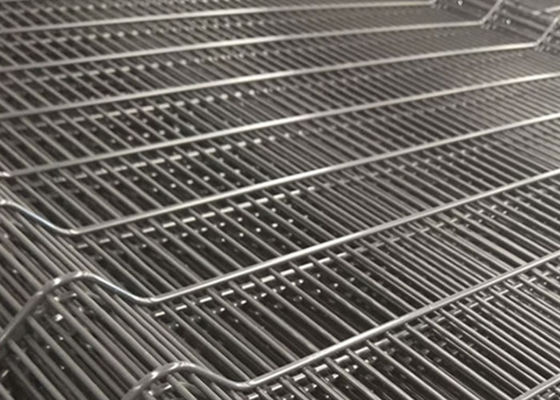

358 Fence Panel Types
358 Security Fencing Anti-Climb Anti-Cut Galvanized Steel Panels 0 358 Security Fencing Anti-Climb Anti-Cut Galvanized Steel Panels 1

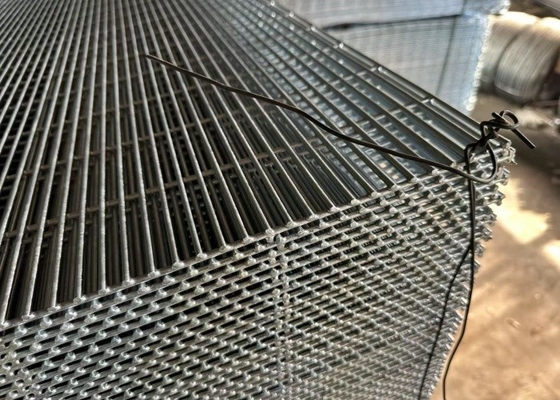

Packaging
358 Security Fencing Anti-Climb Anti-Cut Galvanized Steel Panels 2 358 Security Fencing Anti-Climb Anti-Cut Galvanized Steel Panels 3 358 Security Fencing Anti-Climb Anti-Cut Galvanized Steel Panels 4
